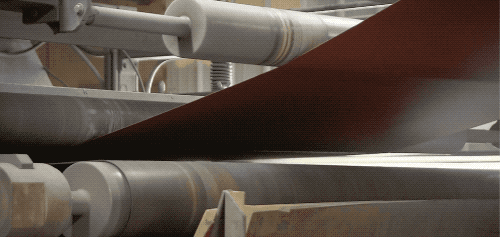

Electrostatic sand planting is an important technology in the production of coated abrasives. It uses a high-voltage electrostatic field between the upper and lower electrodes to charge abrasive grains, which then move toward the upper electrode under the influence of the electrostatic force and adhere to the substrate surface coated with adhesive. This method ensures that abrasive grains are correctly aligned, with their sharp edges facing upward, thus enhancing the cutting efficiency and durability of abrasives. The effectiveness of the electrostatic sanding process is crucial for achieving high-performance abrasives. Several factors influence the overall quality and consistency of this process.
The grains size of the abrasives plays a significant role in their distribution uniformity and adhesion on the sanding belt. Abrasives that are too large or too small can affect these properties. In general, larger abrasive grains require stronger electrostatic forces, meaning higher voltage and current. However, increasing voltage and current has limitations due to other conditions. Therefore, abrasives coarser than P36 may require the use of gravity sanding techniques. Additionally, sharp-edged and angular grains are more likely to align correctly in the adhesive layer, improving the cutting performance of the abrasive. High-purity abrasives help reduce interference from impurities in the electrostatic field, leading to more consistent grains alignment and better adhesion.
If the adhesive layer is too thick, it will prevent the abrasive grains from being fully embedded. On the other hand, if the adhesive viscosity is too low, the grains may not adhere properly, leading to grains detachment during use. The thickness of the adhesive layer must be uniform and optimal. An overly thick layer may cover the abrasive grains, while a too-thin layer may fail to secure the grains effectively.
The performance of the electrostatic equipment significantly affects the final quality of coated abrasives. For example, excessive voltage can cause uneven placement of the abrasive grains or damage the adhesive layer; too much planting distance weakens the electric field strength, leading to poor grains alignment; dust accumulation or equipment wear can destroy the uniformity of the electric field, impacting grains placement. Regular maintenance and adjusting voltage and planting distance according to grains size can help improve overall performance.
The quality and manufacturing process of the substrate have a decisive impact on the electrostatic sanding effect. The surface resistivity, flatness, and quality of the protective layer on the sanding belt all influence the effectiveness of the electrostatic process. Conductive substrates can enhance the effectiveness of the electrostatic field, improving particle alignment and adhesion. A smooth and uniform substrate surface allows better adhesive application and even distribution of abrasive grains. Rough or uneven surfaces may cause irregular sanding results.
The speed of the conveyor belt and the time spent by the equipment must be synchronized to ensure consistent grains alignment and adhesion. If the conveyor belt runs too fast or too slow, it will affect the accumulation of static electricity on the sanding belt surface, thereby impacting grains adhesion. Real-time monitoring systems can detect irregularities in the sanding process and allow for immediate adjustments to maintain consistent results.
Air temperature, humidity, and airflow are critical to the high-voltage electrostatic field. The optimal environmental parameters are a temperature of 25°C ± 2°C, relative humidity of 50% ± 5%, and airspeed between 1.0 m/s and 1.2 m/s. Optimizing these parameters can significantly improve sanding efficiency and results. Low temperatures increase the viscosity of the adhesive, making it more difficult for grains to embed correctly. On the other hand, high temperatures accelerate adhesive curing, reducing the time available for grains alignment. Excessive humidity can cause the dissipation of static charge, weakening the effectiveness of the magnetic field. It also introduces moisture into the adhesive, which can affect the bonding strength.
Optimizing the above factors can bring many benefits to the production of coated abrasives:
Improved Performance: Proper grains alignment can enhance cutting efficiency and reduce tool wear.
Consistent Quality: Uniform distribution of grains ensures reliable performance across all abrasive tools.
Increased Productivity: Fewer defects and better adhesive strength lead to reduced material waste and less downtime.
Extended Tool Life: Enhanced particle retention and bonding strength improve the durability of coated abrasives.
Electrostatic sand planting is a complex process influenced by several factors, including the properties of abrasive grains, adhesive characteristics, equipment parameters, substrate quality, environmental conditions, and operational precision. By understanding and optimizing these factors, manufacturers can produce high-performance coated abrasives that meet the stringent requirements of modern industries.
Achieving excellent electrostatic sanding requires a combination of technical expertise, advanced equipment, and meticulous quality control. As technology continues to evolve, we can expect further improvements in the efficiency and accuracy of this critical manufacturing process.
