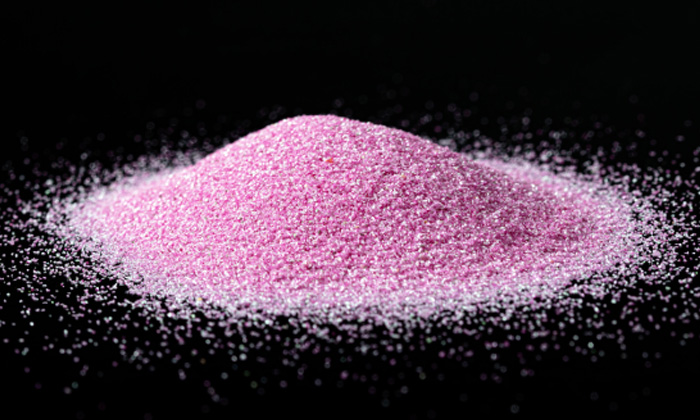

Pink Fused Alumina (PFA) is a high-performance abrasive made from aluminum oxide with added chromium oxide, which gives it a distinct pink color. The chromium content enhances toughness and durability, making PFA ideal for demanding grinding and cutting tasks.
High Hardness: The incorporation of chromium oxide enhances the hardness of Pink Fused Alumina, allowing it to withstand heavy wear and extend tool life.
Enhanced Toughness: Its unique structure provides excellent toughness, minimizing the risk of fracture during intense grinding processes.
Angular Grain Shape: The sharp, angular grains contribute to efficient cutting action, enabling faster material removal and superior surface finishes.
Thermal Stability: Withstands high temperatures without degradation, making it suitable for applications that require heat resistance.
Pink Fused Alumina Materials Applications
Precision Grinding Tools – Perfect for high-hardness materials such as hardened steel.
Cutting & Sharpening – Ideal for tools requiring both hardness and toughness.
Surface Finishing – Delivers a smooth, even finish on metal and alloy surfaces.
Refractory Applications – Used in high-temperature environments for its excellent resistance to wear.
Physical Properties and Chemical Composition
| Basic minerals: | α-Al2O3 | ||||
| Crystal Size: | 600-800 μm | ||||
| Hardness: | Mohs:9 | ||||
| Knoop hardness: | 2200-2300 kg/cm3 | ||||
| Melting Point: | 2000 ℃ | ||||
| Specific Gravity: | 3.9-4.1g/cm3 | ||||
| Bulk density(LPD): | 1.40-1.91 g/cm3 | ||||
| Color: | Pink | ||||
| Particle shape: | Angular | ||||
| Item/ chemical composition | F12~F80 | F90~F150 | F180~F220 | ||
| Low Chromium | AL2O3 | ≥98.5% | ≥98.5% | ≥98.0% | |
| Cr2O3 | 0.20-0.45% | 0.20-0.45% | 0.20-0.45% | ||
| NA2O | ≤0.50% | ≤0.55% | ≤0.60% | ||
| Medium Chromium | AL2O3 | ≥98.2% | ≥98.2% | ≥97.8% | |
| Cr2O3 | 0.45-1.0% | 0.45-1.0% | 0.45-1.0% | ||
| NA2O | ≤0.55% | ≤0.60% | ≤0.70% | ||
| High Chromium | AL2O3 | ≥97.4% | ≥97% | ≥96.5% | |
| Cr2O3 | 1.0-2.0% | 1.0-2.0% | 1.0-2.0% | ||
| NA2O | ≤0.55% | ≤0.60% | ≤0.70% | ||
| Size | 5-8mm (-8+5mm) | ||||
| 3-5mm (-5+3mm) | |||||
| 1-3mm (-3+1mm) | |||||
| 0-1mm (-1mm) | |||||
| FEPA Standard | F24, F30, F36, F40, F46, F54, F60, F80, F100, F120 | ||||
| JIS Standard | #24, #30, #36,#40, #46, #54, #60, #80, #100, #120 | ||||
